Basic Specification
| Engine | |

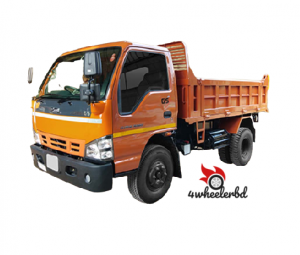

| Model | SAMRAT XM TIPPER |
| Type | 4 cylinder in line OHV, Diesel, Turbocharged with intercooler |
| Displacement | 3455 cc |
| Fuel System | Diesel |
| Max torque | 315 Nm @ 1750-2000 rpm |
| Max Output | 75 kW (101 BHP) @ 3000 rpm |
| Transmission | |
| Gearbox | 5 Speed ( 5F + 1 Reverse) |
| Fuel Tank Capacity | 180 Litres |
| Length, Weight & Equipment | |
| Gross Vehicle weight | 8720 kg |
| Kerb Weight | 2200 kg |
| Tyre | 8.25 x 16 – 16 PR |
| Wheelbase | 2815 mm |
| CUM(Cubic Meter) | 5.5 CUM Box |
| CUFT(Cubic Feet)) | 194.23 CUFT Box |
| CUFT(Cubic Feet) as per Market | 200 to 250 CUFT Box (Unofficial) |
| Tipper Body Dimension | N/A |
