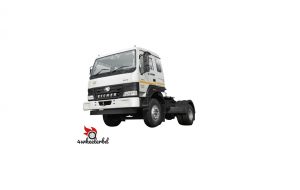

Eicher 40.40


Category:

Key Specifications

Power 183
GVW 40200 kg
Wheelbase 3485 mm
Engine 5883 cc
Fuel Tank 370 Ltr
Payload 34525 Kgs
Transmission Manual

Performance

Max Power 183
Displacement (cc) 5883 cc
Fuel Tank (Litres) 370 Ltr
Transmission Manual
Gradeability (%) 18.3 %
Turning Radius (mm) 6600
Engine Cummins B 5.9 180 31
Max Torque 685 Nm
Clutch Single Plate dry friction type, 380 mm dia.
Emission Norms BS-III
Gearbox 6-Speed
Engine Cylinders 6
Max Speed (km/h) 70

Design & Build

GVW / GCW (Kgs) 40200 kg
Wheelbase (mm) 3485 mm
Payload (Kgs) 34525 Kgs
Rear Tyre 10.00 x 20 – 16PR
Overall Height (mm) 3005
Overall Length (mm) 5925
Kerb Weight (Kgs) 5675
Chassis Type Chassis with Cabin
Axle Configuration 4×2
Tiltable Cabin Yes
Cabin Type Sleeper Cabin
Body Option Trailer Body
Overall Width (mm) 2450
Ground Clearance (mm) 252

Comfort

A/C No
Cruise Control No
Navigation System No
Driver Information Display No
Telematics No
Adjustable Driver Seat No
Arm-rest No
Seat Type Standard
Tiltable Steering Yes
Steering Hydraulic Power-assisted

Safety

Brakes Air Brakes
Parking Brakes Yes
Seat Belts Yes
Hill Hold No
Fog Lights No
Power Steering Yes
Tubeless Tyres Yes
ABS Yes
Rear Axle Heavy-duty fully floating banjo type
Front Suspension Semi-elliptical laminated leaf springs at the front
Front Axle Heavy-duty forged ‘|’ beam reverse Elliot type
Rear Suspension Hydraulic double-acting telescopic shock

 Others

Bulker Air Inlet Pipe No
Bulker Equipments No
Bulker Electricals No
Floor Material No
Side Board Material No
Size (Cu. M) No
Rear Board Material No
Length {mm (ft.)} No
External/Interior Surface No
Width {mm (ft.)} No
Refrigerating Unit No
Height {mm (ft.)} No
Temperature Range No
Chassis No
No. Of Axles 3
Landing Gear No
Axle Types Semi-trailer
Floor Type No
Body Brakes full air ‘S’ cam
Body Material No
Electricals 2 x 12 V
Canopy Length No
Water Tank Capacity (KL) No
Water Tank Type No
No. Of Valves No
Pump Type No
Bulker Type No
Bulker Discharge Pipe No
