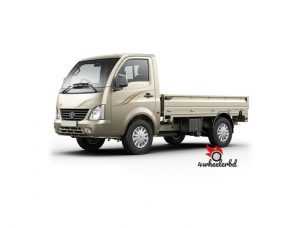

Tata Ace Super


৳ 1,296,000

The Tata Ace Super is a commercial mini truck. It offers a loading deck length of 2630 mm, a top speed of 125 km/h (78 mph), and a turning radius of 5.1 m.

Category:

SPECIFICATIONS Super Ace
ENGINE
Type 475 IDI TCIC
Engine capacity (cc) 1405
Max engine output 70 Hp @ 4500 rpm
Max engine torque 135 Nm @ 3200 rpm
Fuel tank capacity (litres) 38
TRANSMISSION AND STEERING
Clutch Single plate dry friction diaphragm type
Gearbox GBS 65-5 / 5.07
Type 5 speed manual transmission
Steering Power steering
SUSPENSION
Front Strut type independent with anti roll bar
Rear Semi elliptical leaf spring
Shock absorber Hydraulic double acting telescopic type
BRAKES
Front Disc brakes
Rear Drum brakes with LCRV
WHEELS & TYRES
Type 165 R14 LT 8PR radial tubeless
DIMENSIONS
Wheelbase (mm) 2380
Vehicle dimensions (l*b*h) 4340 mm x 1565 mm x 1864 mm
Cargo Box Dimensions (l*b*h) 2630 mm x 1460 mm x 300 mm
WEIGHTS
GVW (Kg) 2260
Payload (Kg) 1000
PERFORMANCE
Grade ability 39%
Top speed (kmph) 125
