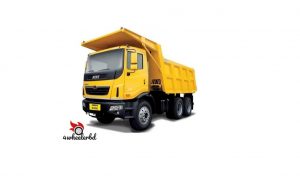

Tata Prima LX 2523.K


৳ 5,900,000

Category:

Key Specifications

Power 308
GVW 25000 kg
Wheelbase 3950 mm
Engine 6700 cc
Fuel Tank 260 Ltr
Payload 10400 Kgs
Transmission Manual

Performance

Max Power 308
Displacement (cc) 6700 cc
Fuel Tank (Litres) 260 Ltr
Transmission Manual
Emission Norms BS-III
Engine Cylinders 6
Gearbox 9-Speed
Gradeability (%) 46 %
Clutch Single-disc dry friction type,430 mm
Turning Radius (mm) 7250
Engine Cummins ISBe CRDi
Max Speed (km/h) 89
Max Torque 900Nm

Design & Build

GVW / GCW (Kgs) 25000 kg
Wheelbase (mm) 3950 mm
Payload (Kgs) 10400 Kgs
Chassis Type Chassis with Cabin
Tiltable Cabin Yes
Cabin Type Sleeper Cabin
Body Option Rock/Scoop Body
Axle Configuration 6×4
Overall Height (mm) 3670
Front Tyre 11 x 20-16PR
Rear Tyre 11 x 20-16PR
Ground Clearance (mm) 254
Overall Width (mm) 2590
Overall Length (mm) 6832
Kerb Weight (Kgs) 14600

Comfort

Cruise Control No
Navigation System No
Telematics No
Adjustable Driver Seat No
Arm-rest No
Seat Type Standard
Driver Information Display Yes
Tiltable Steering Yes
A/C Optional
Steering Adjustable Steering

Safety

Tubeless Tyres No
Seat Belts Yes
Hill Hold No
Fog Lights No
Power Steering Yes
Front Suspension Parabolic Leaf Spring
Front Axle Extra Heavy Duty Forged I Beam
Rear Suspension Heavy Duty Bogie Suspension
Rear Axle RA 109 Single Reduction Axle
Brakes Air Brakes
ABS No
Parking Brakes Yes

Others

Chassis No
Body Brakes Air Brakes
Landing Gear No
Electricals No
Floor Type No
Size (Cu. M) 14
Body Material No
Canopy Length No
Water Tank Capacity (KL) No
Water Tank Type No
No. Of Valves No
Pump Type No
Bulker Type No
Bulker Discharge Pipe No
Bulker Air Inlet Pipe No
Bulker Equipments No
Bulker Electricals No
Floor Material No
Length {mm (ft.)} No
Side Board Material No
Width {mm (ft.)} No
Rear Board Material No
Height {mm (ft.)} No
External/Interior Surface No
No. Of Axles No
Refrigerating Unit No
Axle Types No
Temperature Range No
