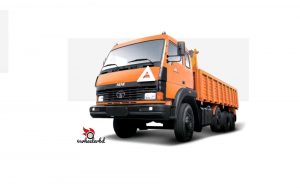

TATA LPT 3118


৳ 4,400,000

Category:

Key Specifications

Power 175
GVW 31000 kg
Wheelbase 5905 mm
Engine 5883 cc
Fuel Tank 365 Ltr
Payload 23520 Kgs
Transmission Manual

Performance

Max Power 175
Displacement (cc) 5883 cc
Fuel Tank (Litres) 365 Ltr
Transmission Manual
Emission Norms BS-IV
Max Speed (km/h) 80
Clutch Single Plate dry friction type
Gearbox 6-Speed
Engine Cylinders 6
Engine Cummins ISBe5.9 180 40 BS-IV Common Rail
Gradeability (%) 19.9 %
Max Torque 700Nm
Turning Radius (mm) 11180

Design & Build

GVW / GCW (Kgs) 31000 kg
Wheelbase (mm) 5905 mm
Payload (Kgs) 23520 Kgs
Chassis Type Chassis with Cowl
Ground Clearance (mm) 250
Cabin Type No Cabin
Overall Width (mm) 2440
Axle Configuration 8×2
Front Tyre 10R20 – 16 PR
Rear Tyre 10R20 – 16 PR
Overall Length (mm) 10385
Overall Height (mm) 1864
Kerb Weight (Kgs) 7480
Body Option Customizable
Tiltable Cabin No

Comfort

A/C No
Cruise Control No
Navigation System No
Driver Information Display No
Telematics No
Adjustable Driver Seat No
Tiltable Steering No
Arm-rest No
Seat Type Standard
Steering Hydraulic Power-assisted

Safety

Power Steering Yes
Rear Suspension Semi elliptical Leaf spring
Seat Belts No
ABS Yes
Front Suspension Parabolic Spring
Rear Axle Tata RA 109 RR Single Speed, Hypoid gear in pressed steel welded beam with differential carrier housing.
Front Axle Heavy-duty forged “I” beam Reverse Elliot type,
Brakes Air Brakes
Parking Brakes Yes
Tubeless Tyres No
Hill Hold No
Fog Lights No

Others

Floor Type No
Chassis NA
Body Material No
Body Brakes Dual circuit, Full Air S-Cam Brake system
Canopy Length No
Water Tank Capacity (KL) No
Water Tank Type No
No. Of Valves No
Pump Type No
Bulker Type No
Bulker Discharge Pipe No
Bulker Air Inlet Pipe No
Bulker Equipments No
Bulker Electricals No
Floor Material No
Side Board Material No
Size (Cu. M) No
Rear Board Material No
Length {mm (ft.)} No
External/Interior Surface No
Width {mm (ft.)} No
Refrigerating Unit No
Height {mm (ft.)} No
Temperature Range No
No. Of Axles No
Electricals No
Axle Types No
Landing Gear Yes
