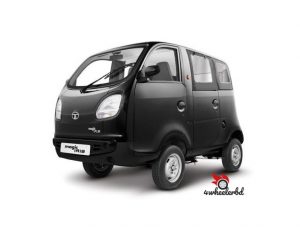

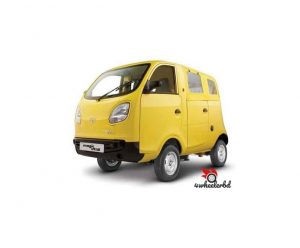

Tata Magic Iris


The Tata Magic Iris is a micro-cab with 5 people seat capacity and comes with a 611cc one-cylinder diesel engine. It is a cab for people transportation and gives great mileage. With compact dimensions, an affordable price tag, robust body and spacious interiors the Tata Magic Iris promise a safe and comfortable way to travel. Nitol Motors Ltd is the authorized dealer of Tata in Bangladesh and all the spare parts of Iris is less costly and available.

Category:

QUICK FACTS & INFORMATION
Body Type MUV
Fuel Type Diesel
ARAI Certified Mileage 35 kmpl
Top Speed (KMPH) 55
Official Tagline Public Transport Ka Ek Naya Avatar
ENGINE & TRANSMISSION
Engine Displacement 611 cc
Maximum Power 10.84 Bhp @ 3000 rpm
Maximum Torque 31 Nm @ 1600 rpm
Engine Description 4 Stroke, Naturally Aspirated, Direct Injection , Water-Cooled Diesel Engine
No. of Cylinders 1
Clutch Type Single Plate, Dry Friction Diaphragm Type, TA59 With Synchromesh (4 Forward Gears), Constant Mesh (Reverse Gear)
Front Axle Independent Stub Axles
Rear Axle Transaxle With CV Shafts
Emission Standard BS III
PERFORMANCE & MILEAGE
Mileage (City) 28 kmpl (approx.)
Mileage (Highway) 32 kmpl (approx.)
DIMENSIONS & WEIGHT
Overall Length 2960 mm
Overall Width 1512 mm
Overall Height 1800 mm
Wheelbase 1650 mm
Ground Clearance 160 mm
Kerb Weight 685 kg
Gross Vehicle Weight 1110 kg
Turning Radius 3.50 metres
Front Track 1250 mm
Rear Track 1310 mm
CAPACITY
Seating Capacity 4 (2 + 2)
Number of Seating Rows 2 Rows
Number of Doors 4 Doors
Fuel Tank Capacity 10 litres
BRAKES & SUSPENSION
Front Brakes Hydraulically Activated Drum Brakes
Rear Brakes Hydraulically Activated Drum Brakes
Front Suspension Independent MacPherson Strut, Hydraulic Double Acting Shock Absorber
Rear Suspension Coil Spring With Semi Trailing Arm, Hydraulic Double Acting Shock Absorber
WHEELS & TYRES
Tyre Size 145/80 R12 X 6 PR Radial
COMFORT & CONVENIENCE
Power Sockets
Air Conditioner
Front Bucket Seats Yes (Driver & Co-Driver)



EXTERIOR FEATURES
Tinted Glass
Body All Steel Body With Double Sheet Steel Doors
INTERIOR FEATURES
Glove Box Yes (Lockable)
Sunvisor with Ticket Holder Yes (At Driver Side)
ACTIVE & PASSIVE SAFETY FEATURES
Rear Seat Belts
Front Seat Belts
INFOTAINMENT
Music System
SEATS & UPHOLSTERY
Folding Rear Seats
Fabric Upholstry
Driver Seat Adjustment Yes (Manually Adjustable Driver & Co-Driver Seat)
OTHER SPECIFICATIONS
Steering Wheel Steering, Mechanical Rack & Pinion Type, 350 mm Diameter
