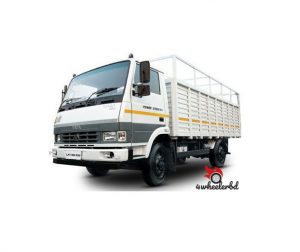

Tata LPT 909 series


The Tata LPT 909 is built tough. The truck is powered by Tata’s 497 TCIC common rail direct fuel injection, 3.8-liter BS4, 4 cylinder engine which produces 123. 3 bhp of power output at 2400 rpm and 400 Nm of peak torque between 1300 and 1600 rpm.

Category:

SPECIFICATIONS LPT 909 Ex
ENGINE
Engine type ATA 497 TCIC, water-cooled direct injection diesel engine with inter-cooler
Engine capacity (cc) 3783
Max engine output 66.3 kW (90 Ps) @ 2400 rpm
Max engine torque 325 Nm @ 1300 – 1600 rpm
Emission norms BS II
TRANSMISSION AND STEERING
Clutch Single plate dry friction type
Gearbox GBS-27 synchromesh, 5F + 1R
Steering Power steering
SUSPENSION
Front Semi elliptical leaf spring
Rear Semi elliptical leaf spring with auxiliary springs
Shock absorber Hydraulic double acting telescopic type at front and rear
FRAME
Type Ladder type frame with rivetted / bolted cross members, side members are of channel section, depth: 200 mm (max), width: 60 mm
BRAKES
Service brake Dual circuit full air S-CAM brake
WHEELS & TYRES
No. 6+1
Size 8.25 x 16 -16 PR Front – Rib Rear – Lug
DIMENSIONS
Wheelbase (mm) 3400, 3800
Overall length (mm) 6225, 6875
Max width (mm) 2155
WEIGHTS
Kerb weight (Kg) 3535, 3650
PERFORMANCE
Grade ability 21%, 22%
Top speed (kmph) 95, 89
Minimum turning circle diameter in mm 12.3, 13.5



SPECIFICATIONS LPT 909 Ex2
ENGINE
Engine type ATA 497 TCIC, water-cooled direct injection diesel engine with inter-cooler
Engine capacity (cc) 3783
Max engine output 125 Ps (92 kW) @ 2400 rpm
Max engine torque 400 Nm @ 1300 – 1500 rpm
Emission norms BS III
TRANSMISSION AND STEERING
Clutch Single plate dry friction type
Gearbox GBS 40, 5F + 1R
Steering Power steering
SUSPENSION
Front Semi elliptical leaf spring
Rear Semi elliptical leaf spring with auxiliary springs
Shock absorber Hydraulic double acting telescopic type at front and rear
FRAME
Type Ladder type frame with rivetted / bolted cross members, side members are of channel section, depth: 200 mm (max) width: 60 mm, thickness: 5 mm
BRAKES
Service brake Dual circuit full air S-CAM brake
WHEELS & TYRES
No. 6+1
Size 8.25 x 16 -16 PR Front – Rib; Rear – Lug
DIMENSIONS
Wheelbase (mm) 3800
Overall length (mm) 6875
Max width (mm) 2155
WEIGHTS
Kerb weight (Kg) 3813 (HDLB)
GVW (Kg) 9600
PERFORMANCE
Grade ability 33%
Top speed (kmph) 90
Minimum turning circle diameter in mm 13.5



SPECIFICATIONS LPT 909 H Ex2
ENGINE
Engine type TATA 497 TC, water-cooled direct injection diesel engine with inter-cooler
Engine capacity (cc) 3783
Max engine output 125 Ps (92 kW) @ 2400 rpm
Max engine torque 400 Nm @ 1300 – 1500 rpm
Emission norms BS III
TRANSMISSION AND STEERING
Clutch Single plate dry friction type
Gearbox GBS 40, 5F + 1R
Steering Power steering
SUSPENSION
Front Semi elliptical leaf spring
Rear Semi elliptical leaf spring with auxiliary springs
Shock absorber Hydraulic double acting telescopic type at front and rear
FRAME
Type Ladder type frame with rivetted / bolted cross members, side members are of channel section, depth: 200 mm (max) width: 60 mm, thickness: 5 mm
BRAKES
Service brake Dual circuit full air S-CAM brake
WHEELS & TYRES
No. 6+1
Size 8.25 x 16 -16 PR Front – Rib; Rear – Lug
DIMENSIONS
Wheelbase (mm) 3400
Overall length (mm) 6225
Max width (mm) 2155
WEIGHTS
Kerb weight (Kg) 3813 (CLB)
GVW (Kg) 10400
PERFORMANCE
Grade ability 30%
Top speed (kmph) 90
Minimum turning circle diameter in mm 12.3
