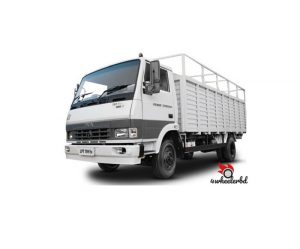

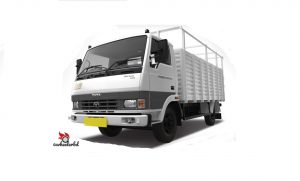

Tata LPT 709 Ex


৳ 2,165,000

The Tata LPT 709 is a light cargo truck. It is built with 8 square meter loading area, Gross Vehicle Weight (GVW) of all three body variants is 7,490 mm divided as 4,275 kg payload capacity and 3,215 kg kerb weight.

Category:

ENGINE
Engine type TATA 497 TCIC, water-cooled direct injection diesel
Engine capacity (cc) 3783
Max engine output 66.2 kW (90 Ps) at 2400 rpm
Max engine torque 325 Nm (33.14 Kgm) at 1300 – 1600 rpm
Emission norms Euro II
TRANSMISSION AND STEERING
Clutch Single plate dry friction type
Gearbox GBS-27 synchromesh, 5F + 1R
Steering Power steering
SUSPENSION
Front Semi elliptical leaf spring
Rear Semi elliptical leaf spring with auxiliary springs
Shock absorber Hydraulic double acting telescopic type at front and rear
FRAME
Type Ladder-type heavy-duty frame with rivetted/bolted cross members, side members are of channel section, depth: 200 mm (max) flange width: 60 mm, thickness: 5mm
BRAKES
Service brake Dual circuit full air S-CAM brake
WHEELS & TYRES
No. 6+1
Size 7.50 x 16 -14 PR
DIMENSIONS
Wheelbase (mm) 3800, 3400
Overall length (mm) 6875, 6225
Max width (mm) 2155
WEIGHTS
Kerb weight (Kg) 2760, 2820
GVW (Kg) 7500
PERFORMANCE
Grade ability 27%
Top speed (kmph) 90
Minimum turning circle diameter in mm 12.3, 13.5
